Description

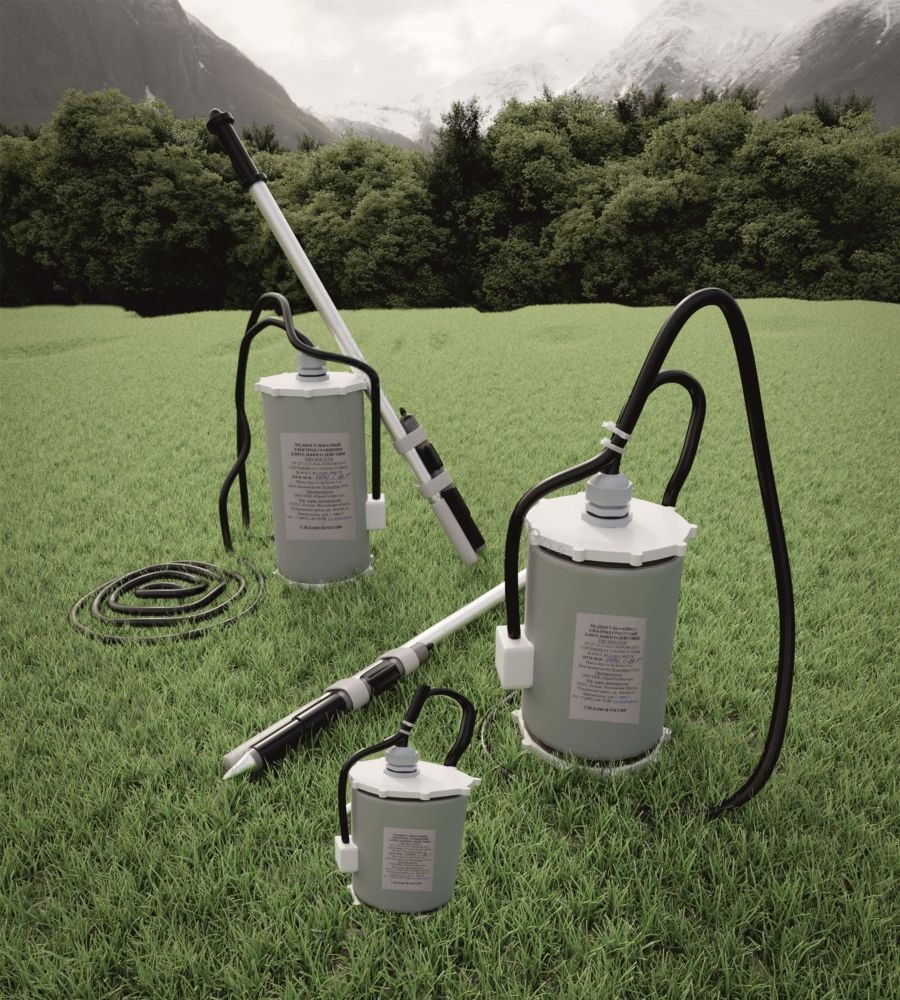

The need to purchase copper sulfate ECS with solid electrolyte may arise when performing certain tasks. The device is intended for underground measurements on metal structures. It allows determining the level of pipeline protection against corrosion.
The device can be used at temperatures from -5°C to +45°C. This is a stationary long-term type modification. It can be used for measurements in any type of soil. Copper sulfate ECS are installed below the soil freezing level. Installation must be performed above the inspected object.
Before ordering ECSM-T, the appropriate modification must be selected. The ECSM-T unit has a solid electrolyte, allowing its use in any soil type. The model is fully ready for operation and does not require additional adjustments. The product complies with GOST standards. The housing consists of an outer chamber and an inner chamber. The material is durable and capable of withstanding moderate damage and loads.
The ECS is equipped with a board for connecting cables. Each cable has labeling tags, which facilitates connection, operation, and maintenance. The cable length is standard at 5 m but can be changed in agreement with the customer. The final price of ECSM-T depends on additional components.
Product Specifications
| Parameters | Values |
| Potential, mV | 100 |
| Resistance, kOhm | 10 |
| Service life, years | 30 |
| Weight, kg | 2.5 |
| Minimum cable length, m | 2 |
