Description

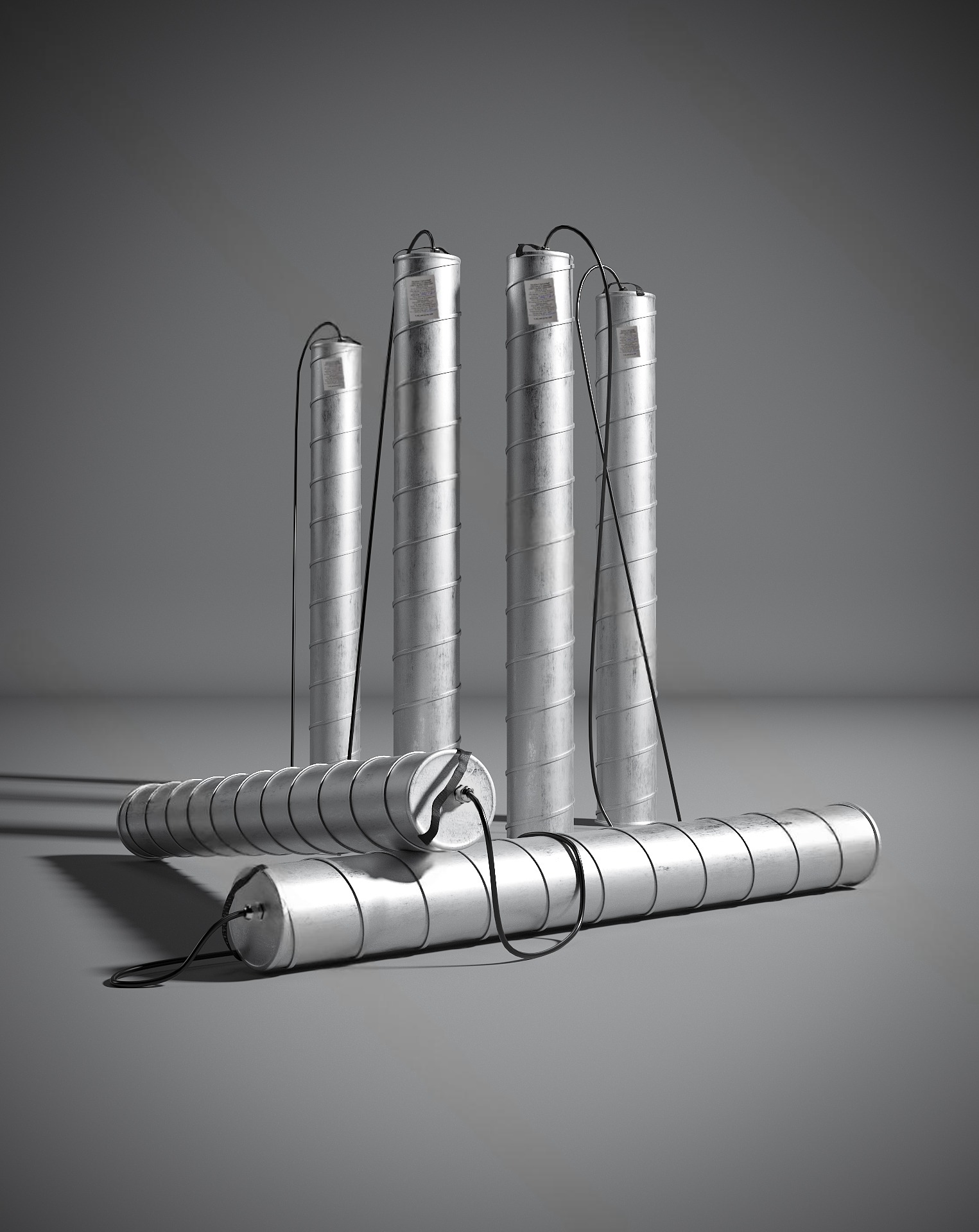

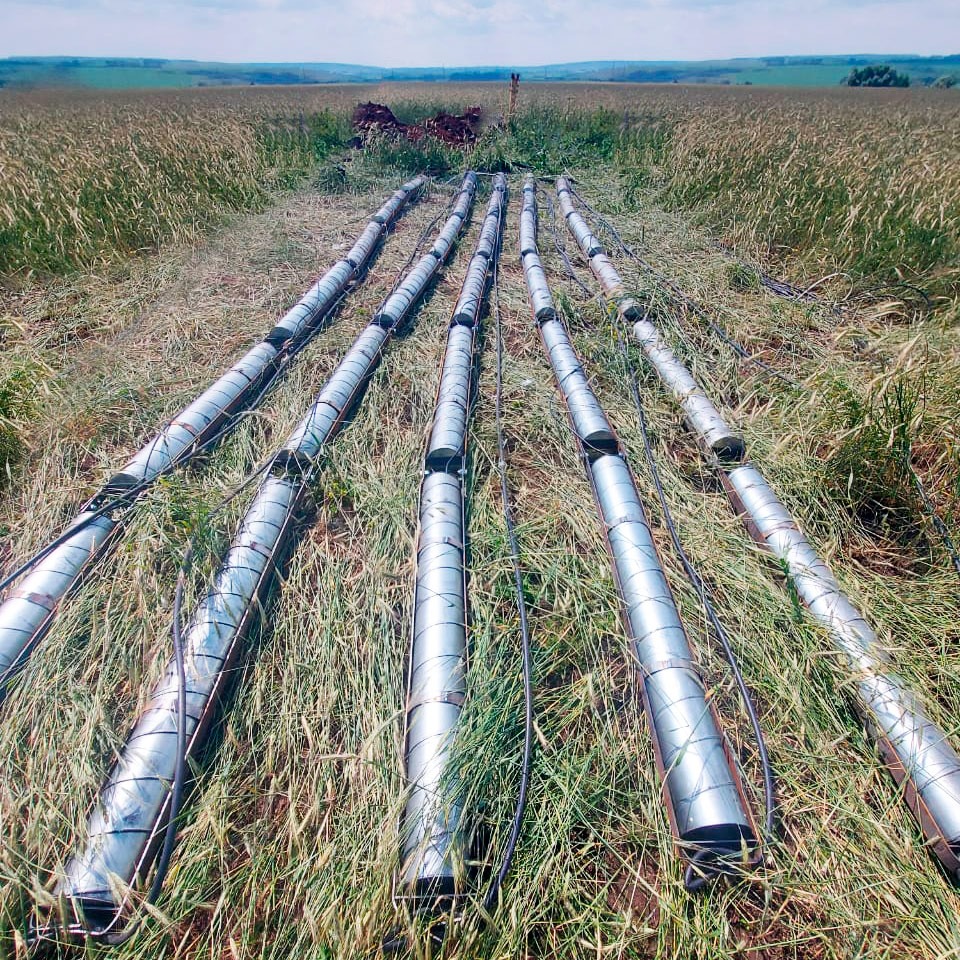

The deep anode grounder (GAZ.M.K) is a structure consisting of a supporting device (bandage) that connects the anodes into a garland and allows installation of the assembled structure (garland) into a borehole at the design depth; a casing (tubus) made of thin-sheet galvanized steel with a thickness of at least 0.5 mm; a magnetite working element; coxo-mineral activator of the KMA.KMG brand; and a gas outlet tube.
The cable from each working element is made of KGN-XL EHZ-U cable, crimped with a cable terminal, and brought to the surface. The casing used for the anode grounder prevents the activator from spilling during storage, evenly distributes the fill along the working element, ensures reliability during transportation and installation, and promotes the distribution of anode current from the working element surface. When used directly in soil, the casing material dissolves quickly. The mechanical strength of the bandage and fastening components (tensile strength) during assembly of complete deep anode grounders into a column is at least 35 kN. The calculated number of anode grounders (AG) per column (at maximum allowable working element weight) is at least 33 units; if necessary, the bandage design can be reinforced to increase the number of AGs in the column (upon request).
