Description
Instrumentation and Control Post (ICP) Type 8 is required to perform control measurements in systems for protecting metal structures from corrosion. The measurement post is intended for use on gas pipelines and other gas distribution systems in moderate and moderately cold climates in accordance with GOST 15150.

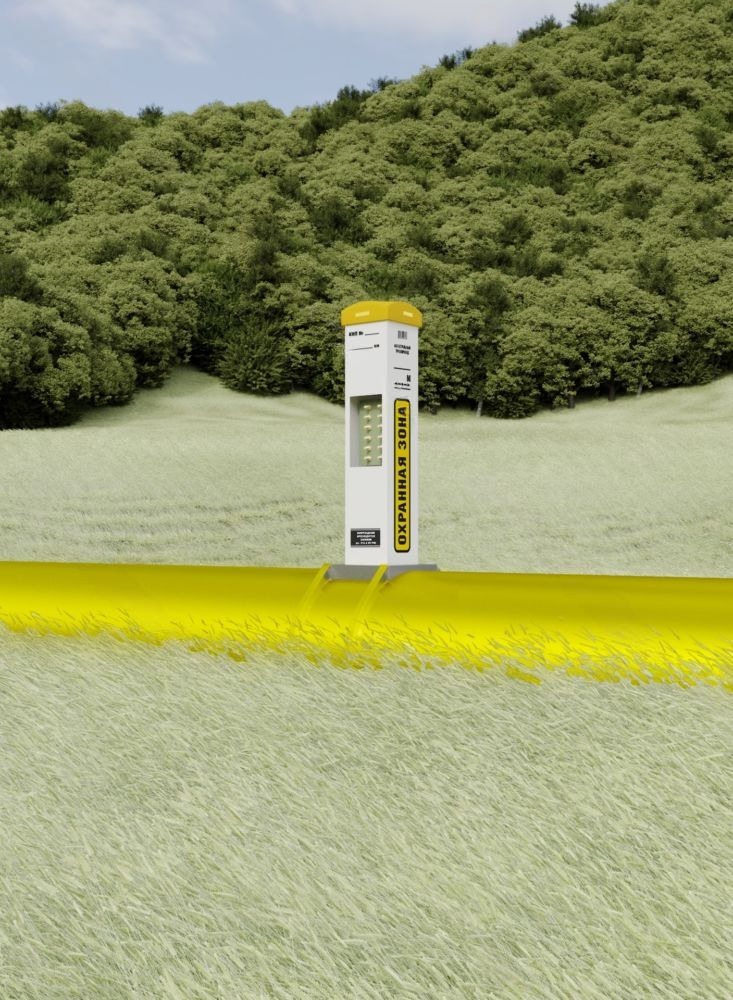

The measurement post is used for installation on the aboveground section of gas pipelines with pipe diameters from 10 to 50 cm. Before ordering ICP Type 8, it is necessary to accurately determine the pipe diameter. The device consists of a housing made of non-combustible and frost-resistant material. The four-faced post is equipped with markings containing all the necessary information.
The information window is combined with the terminal panel, which is closed with a lockable cover. Installation of the device is carried out using a special bracket directly on the pipeline. The bracket contains sealed entries required for cable routing and connection. Measuring equipment is connected inside the panel with a cover. The price of ICP Type 8 depends on the configuration. Additional devices must be ordered separately.
Product Specifications
Delivery of ICP Type 8 is discussed individually with the customer. The product can be supplied in group or individual packaging.
| Parameter name | ICP Type 8 |
| Post height, mm | 500 – 1000 |
| Face width, mm | 200 |
| Wall thickness, mm | 3 |
| Weight, kg, max | 15 |
| Enclosure protection rating | not less than IP23 |
| Operating temperature range, °C | U1, -40 °C … +60 °C
UHL1, -60 °C … +60 °C |
| Number of contact terminals on the terminal panel: | |
| – measuring terminals for cables up to 6 mm², pcs. | 0, 4, 6, 8, 12, 24 |
| – power terminals for cables up to 35 mm², pcs. | 0, 2, 4, 6, 8 |
| Service life, years | not less than 10 years |
Scope of Supply
| Name | Unit
of measure |
Quantity |
| ICP Type 8 post | pcs. | 1 |
| Key for terminal panel cover | pcs. | 1 |
| Marker | pcs. | 1 |
| Identification tags | pcs. | according to the number of terminals |
| Cable tie | pcs. | |
| Operation manual | copy | 1 per batch |
| Clamps with gaskets | pcs. | 2 |
| * Additional devices | by order | |
| * Kilometer marker | pcs. | 1 |
| * Aerosol paint (1 can per 10 markers when ordering a kilometer marker) | pcs. | 1 |
| * Number stencil (when ordering a kilometer marker) | set | as ordered |
| * Spare parts kit | set | as ordered |
* Supplied upon additional order
