Description

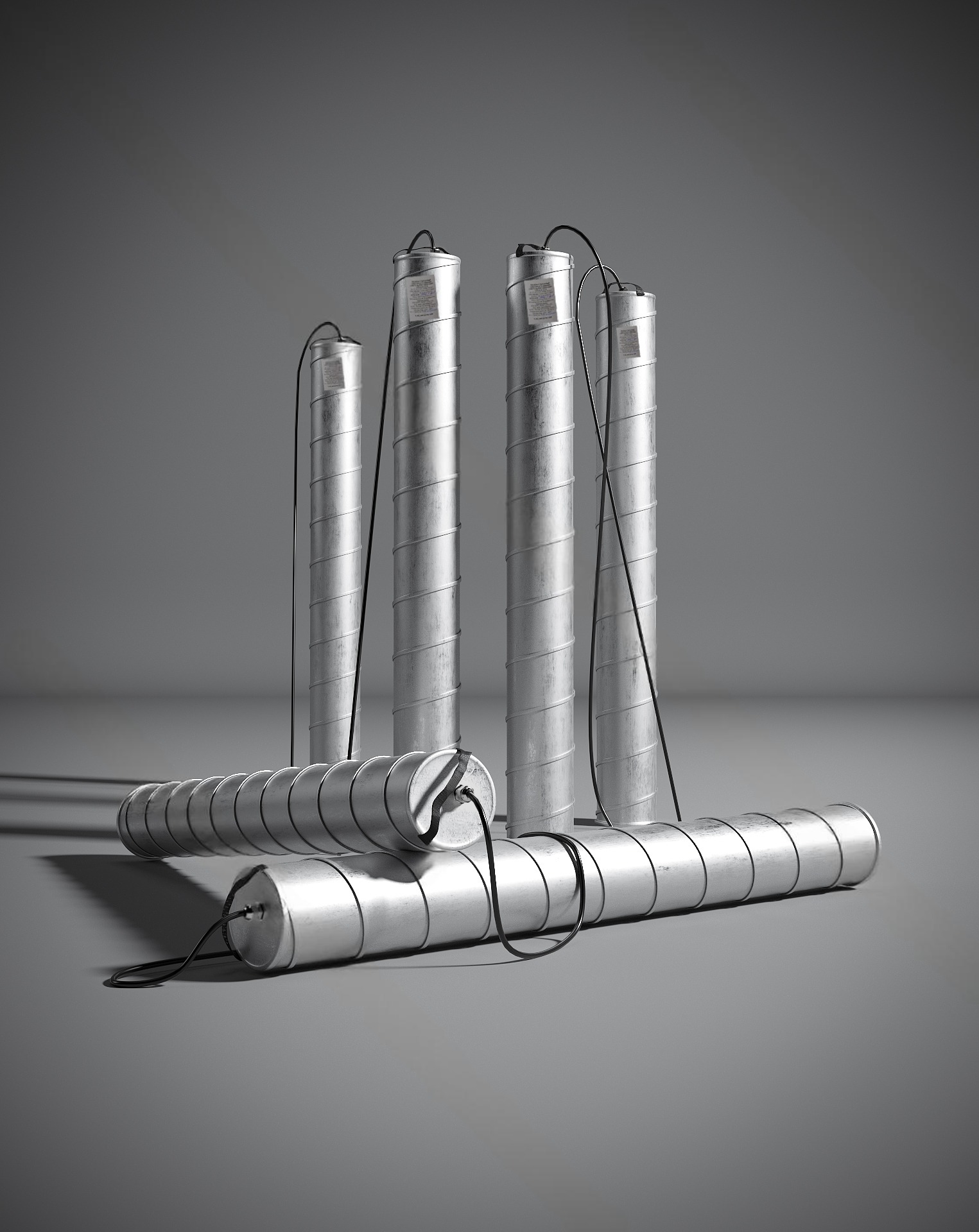

Our catalog offers PAZ-TK surface titanium anode grounders, which function as a protective casing specifically designed to prevent the spillage of activator during storage.
The casing is made of steel coated with a zinc layer. Sheet thickness is 0.5 mm. Inside the casing is a central working element, with all free space around it filled with KMA.KMG coxo-mineral activator.
The standard PAZ-TK configuration includes a 2-meter output cable, providing installation convenience and allowing the grounder to be positioned at an optimal distance from the protected source. PAZ-TK surface titanium anode grounders evenly distribute the activator along the working element, ensuring uniform anode current distribution.
The casing guarantees safety during transportation and installation, preventing damage and deformation. It ensures uniform distribution of anode current from the working element into the soil, providing effective operation. For ease of installation and handling, the grounder is equipped with a mounting handle.
PAZ-TK surface titanium anode grounders are a reliable solution for cathodic protection of underground metal structures. Titanium properties and high corrosion resistance ensure durability and efficiency. The titanium grounder, available for order, is used in various industries, including oil and gas, transport infrastructure, and other sectors requiring reliable corrosion protection.
PAZ-TK surface titanium anode grounders serve as low-solubility elements in both deep and surface grounding systems for cathodic protection of below-ground metal structures. The low dissolution rate extends service life.
Customers can order grounders connected in a string with an oversized current-carrying cable.
Operating Conditions
Guaranteed stable operation under the following conditions:
– Maximum ambient temperature +40 °C;
– Minimum ambient temperature -40 °C;
– Maximum relative humidity 100% at +35 °C.
Technical Specifications
| Parameter | Value |
| 1. Nominal operating current, A | 2.5 |
| 2. Working surface area, m² | 0.25 |
| 3. Dimensions (L×W×T), mm | 1000×125×2 |
| 4. Grounder resistance, Ω, max | 0.05 |
| 5. Thickness of plasma-sprayed magnetite layer, mm | 0.3 |
| 6. Grounder weight without cable, kg | 1 |
| 7. Dissolution rate at current density up to 30 A/m², g/A·year | 20 |
| 8. Conductor cross-section, mm² | 6* |
| 9. Conductor length, mm | 5000* |
| 10. Warranty period from commissioning, months | 30 |
| 11. Storage warranty period, months | 6 |
| 12. Service life, years, min | 15 |
* Conductor length and cross-section can be modified upon customer request.
Construction
The titanium anode grounders consist of a titanium plate coated with magnetite via plasma spraying. This method creates a durable and robust coating, providing effective corrosion protection and long service life.
- buckle;
- titanium working element;
- centrator;
- protective casing;
- top cover;
- cable gland;
- cable;
- gas vent tube;
- bottom cover;
- tip.
The titanium plate is optimal for manufacturing anode grounders due to its high corrosion resistance and low grounding resistance. The copper supply conductor ensures reliable current transmission. For pricing and delivery conditions of PAZ-TK, please consult the manager.
