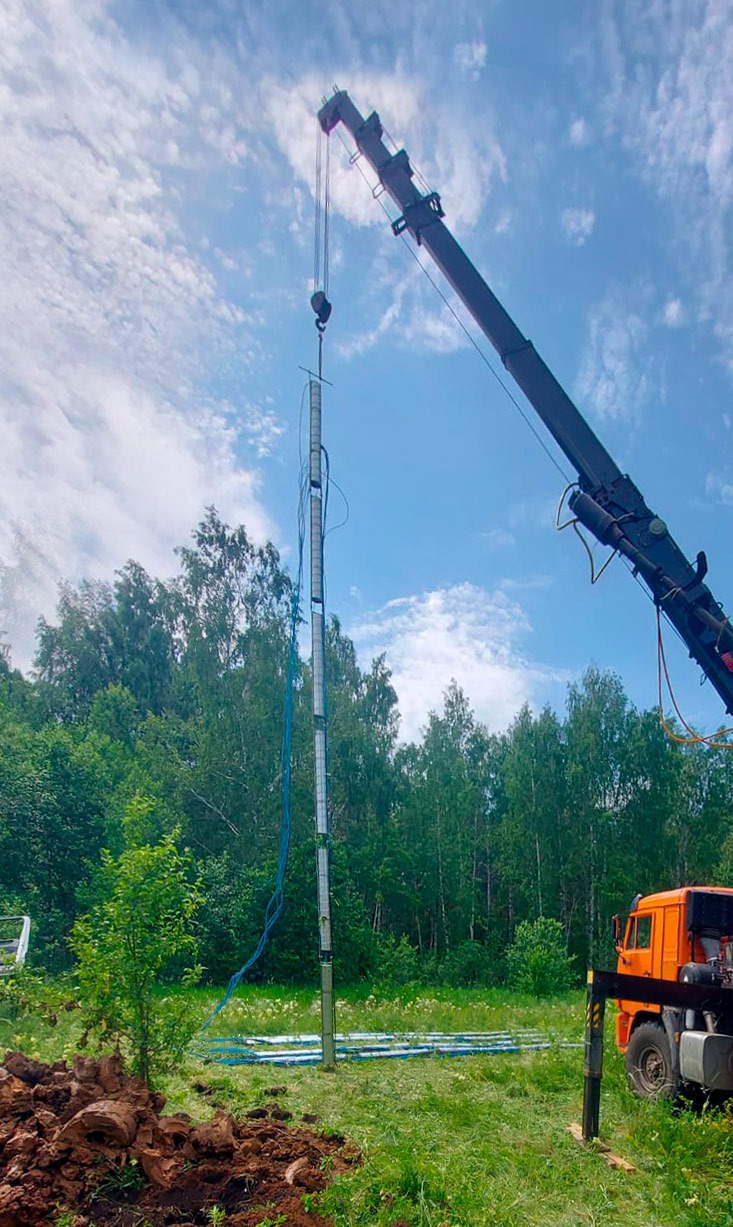

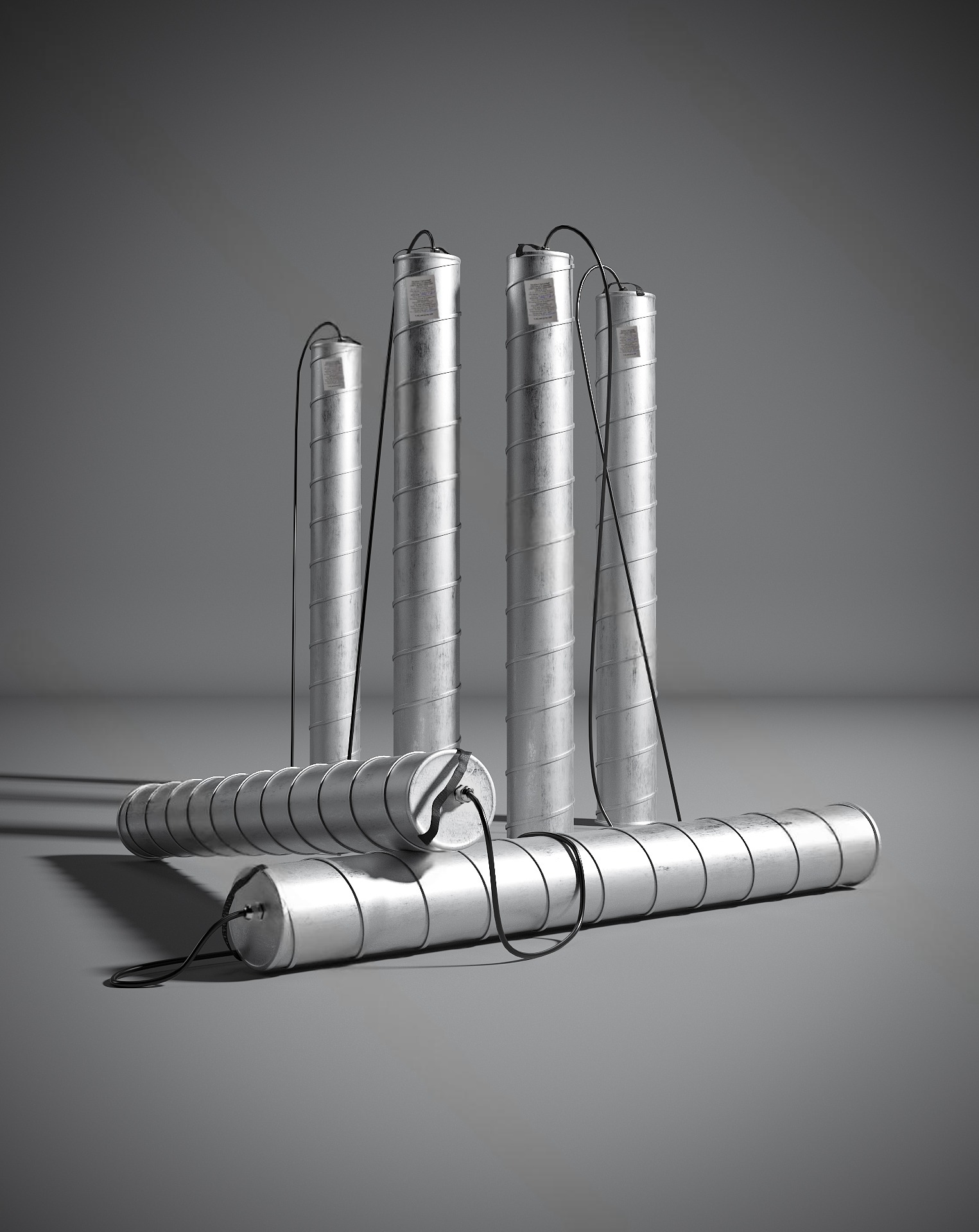

AZF-G deep ferrosilicon anode grounders

Description

AZF has the following advantages:

• uses a special KGN-XL-EHZ-U connecting cable of own production with reinforced insulation and sheath;
• reduced current spread resistance due to improved formula of in-house produced KMA.KMG coxo-mineral activator;
• dissolution rate reduced to 0.15 kg/A·year by adding chromium and other modifiers during production of the working element to achieve a unique alloy composition;
• uniform dissolution of the anode grounder achieved through an improved geometric design, ensuring exponential current distribution across the entire working element surface;
• the bandage of the AZF-G deep anode grounder withstands a load of at least 45 kN (4500 kgf).

Products are used in cathodic protection systems for:

• main, field, and other pipelines, and multi-line pipeline systems in any soils, including rocky, arid, desert, and permafrost soils;
• branched communications of compressor stations, gas distribution, oil pumping stations, thermal power plants, and other industrial sites;
• technological tanks of any purpose;
• port and berth structures, offshore platforms, and other hydraulic engineering structures.

1. bandage;
2. ferrosilicon working element;
3. centrator;
4. protective casing;
5. top cover;
6. hermetic feedthrough;
7. cable;
8. gas outlet tube;
9. bottom cover;
10. tip.
