Description
In our assortment, you can select and purchase magnetite anode grounders for deep grounding of the GAZ.KMG.F type. The presence of a bandage allows installation into boreholes and immersion to the design depth.
Application Area
The anodes are used in Cathodic Protection (CP) systems for underground structures — main oil and gas pipelines, gas distribution networks, pipelines for transferring hazardous substances, and other similar transport systems.
Ordering GAZ.KMG.F type magnetite deep anode grounders from our website provides a ready-to-use set without additional modifications. It is suitable for insertion into soils with high electrical conductivity. When installed in a borehole, the element should take a vertical position.
Technical Description

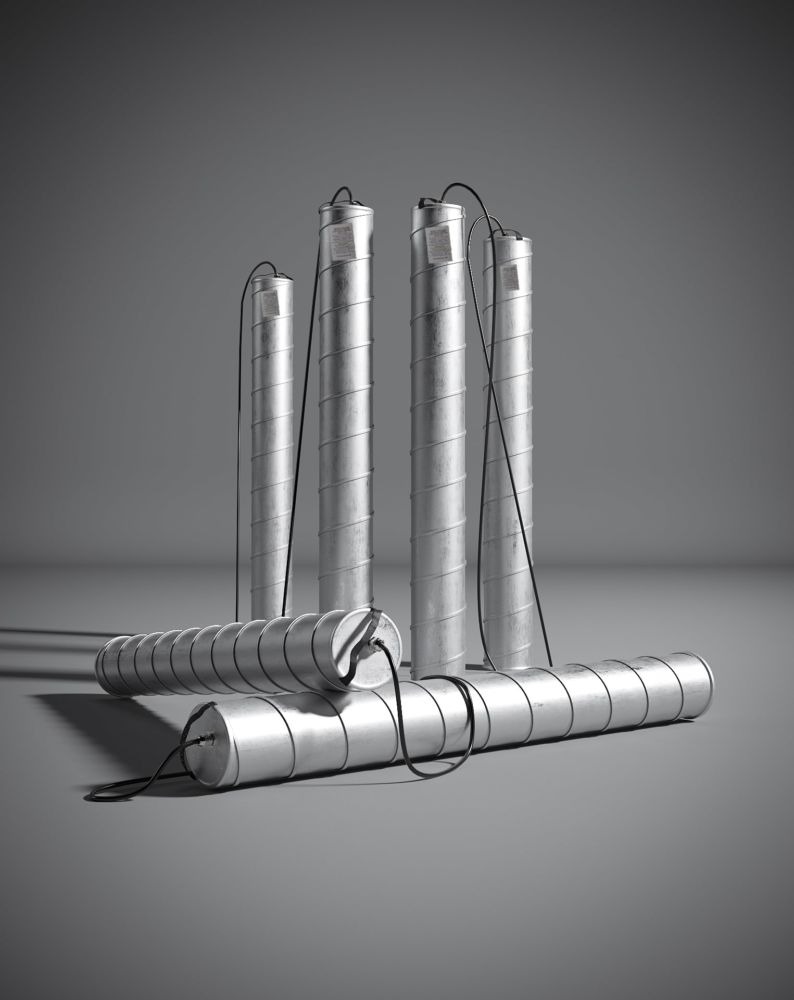

The design of magnetite deep anode grounders GAZ.KMG.F includes a special casing that serves as a container for the magnetite electrode surrounded by a coxo-mineral activator. The casing ensures safe transportation and installation. During operation, the container dissolves.
The casing is securely fixed with guide brackets. This is necessary to connect complete deep grounders into a chain to increase current capacity and reduce transition resistance. No more than 24 blocks can be included in a chain.
The venting of gases generated during operation of GAZ.KMG.F magnetite deep anode grounders is managed using a gas outlet tube. Together with the cable system, it is brought to the surface. The gas outlet tube is perforated along its length and manufactured to order, with one tube per working element installed in a single borehole.
The customer determines the number and components of the deep grounding system, specifying how many blocks will be installed and the length of connection cables and drainage tubes. The equipment is selected according to the prepared cathodic protection project.
The complete grounders reach operational mode and low current dispersion resistance in minimal time. The equipment does not require additional modifications, significantly simplifying installation of the anode grounders.

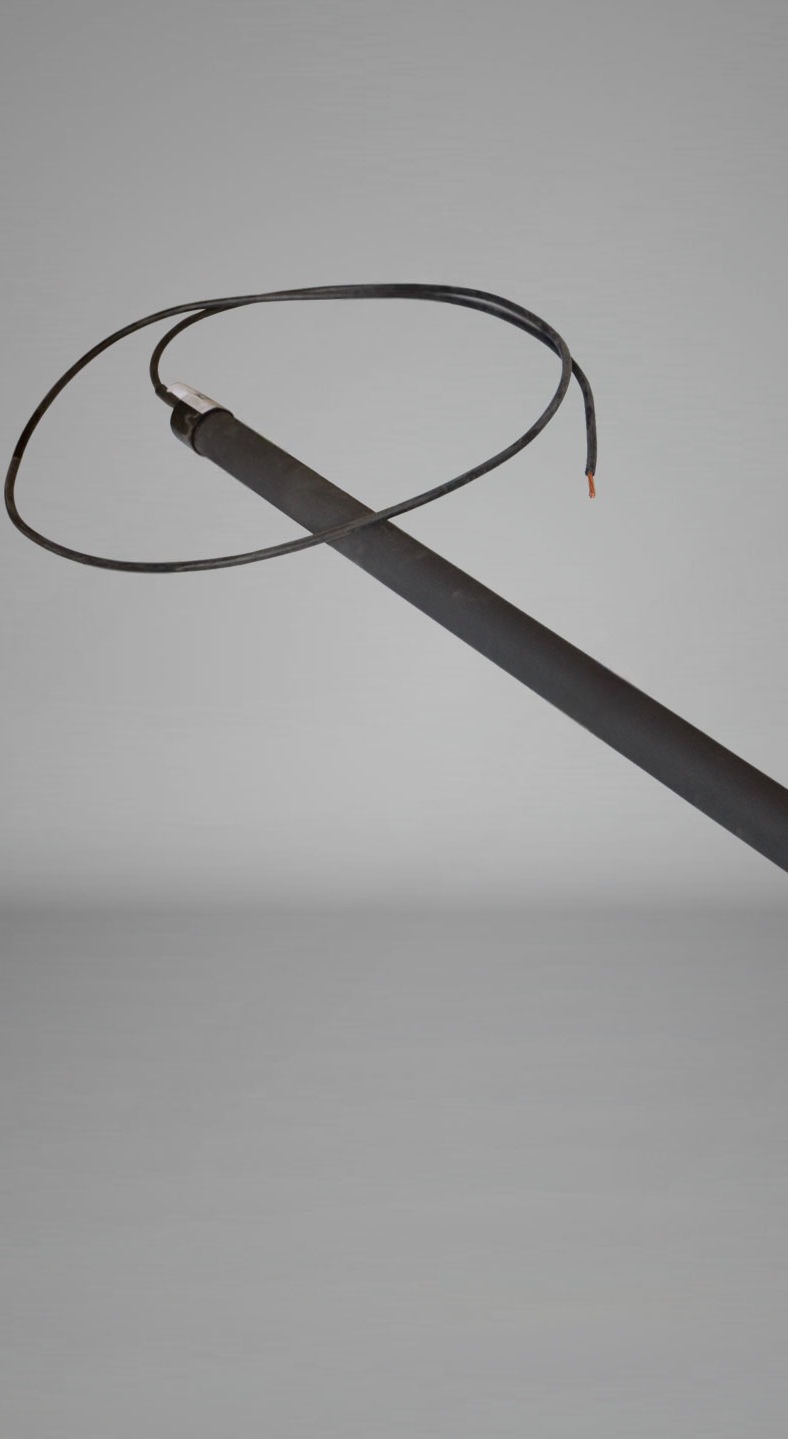

Each block is equipped with a connection cable. The cable length depends on borehole depth and installation height of the element. The cable has no joints and is brought to the surface for connection to the anode line cable. Pricing and delivery terms can be obtained by contacting our manager.
